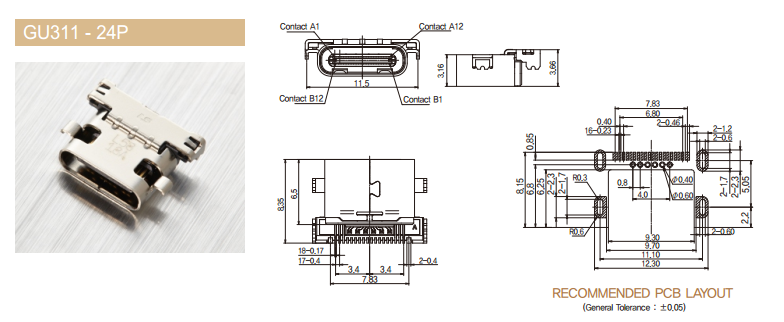

■ 产品名称： GU311

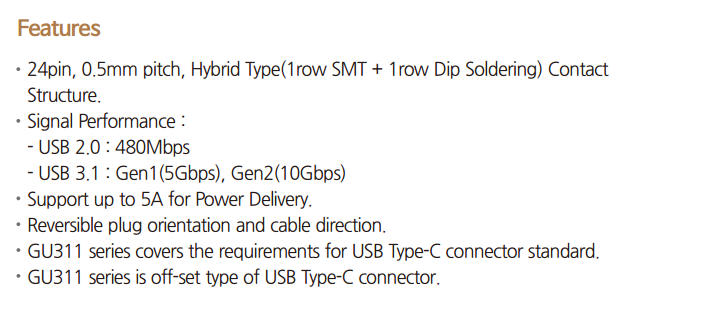

Features
24pin, 0.5mm pitch, Hybrid Type(1row SMT + 1row Dip Soldering) Contact
Structure.
Signal Performance :
- USB 2.0 : 480Mbps
- USB 3.1 : Gen1(5Gbps), Gen2(10Gbps)
Support up to 5A for Power Delivery.
Reversible plug orientation and cable direction.
GU311 series covers the requirements for USB Type-C connector standard.
GU311 series is off-set type of USB Type-C connector.
