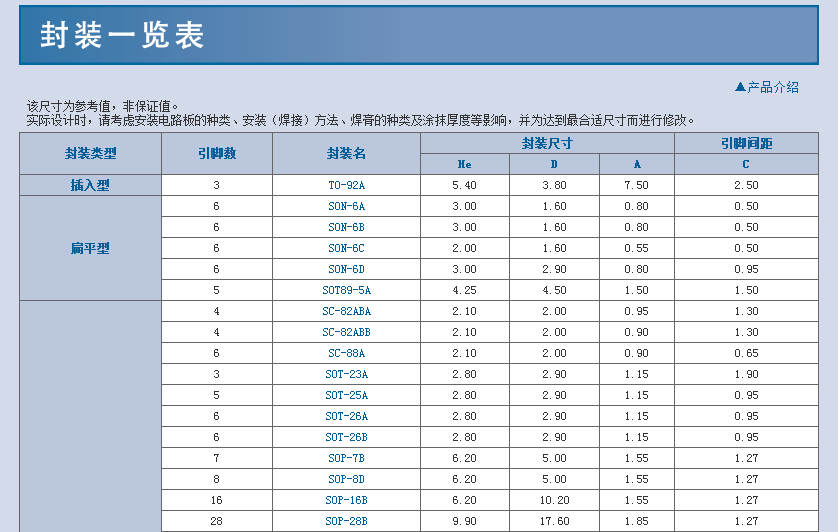

■ 产品名称： 封装一览表
产品编号：20141118173351
产品价格：¥
产品简介：
该尺寸为参考值，非保证值。
实际设计时，请考虑安装电路板的种类、安装（焊接）方法、焊膏的种类及涂抹厚度等影响，并为达到最合适尺寸而进行修改。
| 封装类型 | 引脚数 | 封装名 | 封装尺寸 | 引脚间距 | ||
| He | D | A | C | |||
| 插入型 | 3 | TO-92A | 5.40 | 3.80 | 7.50 | 2.50 |
| 扁平型 | 6 | SON-6A | 3.00 | 1.60 | 0.80 | 0.50 |
| 6 | SON-6B | 3.00 | 1.60 | 0.80 | 0.50 | |
| 6 | SON-6C | 2.00 | 1.60 | 0.55 | 0.50 | |
| 6 | SON-6D | 3.00 | 2.90 | 0.80 | 0.95 | |
| 5 | SOT89-5A | 4.25 | 4.50 | 1.50 | 1.50 | |
| 鸥翼型 | 4 | SC-82ABA | 2.10 | 2.00 | 0.95 | 1.30 |
| 4 | SC-82ABB | 2.10 | 2.00 | 0.90 | 1.30 | |
| 6 | SC-88A | 2.10 | 2.00 | 0.90 | 0.65 | |
| 3 | SOT-23A | 2.80 | 2.90 | 1.15 | 1.90 | |
| 5 | SOT-25A | 2.80 | 2.90 | 1.15 | 0.95 | |
| 6 | SOT-26A | 2.80 | 2.90 | 1.15 | 0.95 | |
| 6 | SOT-26B | 2.80 | 2.90 | 1.15 | 0.95 | |
| 7 | SOP-7B | 6.20 | 5.00 | 1.55 | 1.27 | |
| 8 | SOP-8D | 6.20 | 5.00 | 1.55 | 1.27 | |
| 16 | SOP-16B | 6.20 | 10.20 | 1.55 | 1.27 | |
| 28 | SOP-28B | 9.90 | 17.60 | 1.85 | 1.27 | |
| 44 | SOP-44A | 16.00 | 28.50 | 2.84 | 1.27 | |
| 8 | SSOP-8A | 3.10 | 2.00 | 0.75 | 0.50 | |
| 24 | SSOP-24B | 7.80 | 10.20 | 1.90 | 0.80 | |
| 36 | SSOP-36A | 7.80 | 15.00 | 1.90 | 0.80 | |
| 42 | SSOP-42A | 9.90 | 17.60 | 1.85 | 0.80 | |
| 16 | TSOP-16A | 6.40 | 5.00 | 1.10 | 0.65 | |
| 16 | TSOP-16B | 6.40 | 5.00 | 1.10 | 0.65 | |
| 20 | TSOP-20A | 6.40 | 6.50 | 1.10 | 0.65 | |
| 20 | TSOP-20C | 6.40 | 6.50 | 1.10 | 0.65 | |
| 20 | TSOP-20D | 6.40 | 6.50 | 1.10 | 0.65 | |
| 20 | TSOP-20E | 6.40 | 6.50 | 1.10 | 0.65 | |
| 8 | VSOP-8B | 4.00 | 2.90 | 1.30 | 0.65 | |
| 8 | HSOP-8A | 6.20 | 5.00 | 1.55 | 1.27 | |
| 28 | HSOP-28A | 9.90 | 18.60 | 2.30 | 0.80 | |
| 28 | HSOP-28C | 9.90 | 17.60 | 1.90 | 0.80 | |
| 36 | HSOP-36A | 9.90 | 17.60 | 1.90 | 0.80 | |
| 64 | QFP-64E | 16.00 | 16.00 | 1.20 | 0.80 | |
| 80 | QFP-80D | 17.20 | 23.20 | 3.22 | 0.80 | |
| 100 | QFP-100A | 17.20 | 23.20 | 3.22 | 0.65 | |
| 3 | TO-252C | 9.90 | 6.60 | 2.30 | 2.30 | |
| 5 | TO-252-5A | 9.90 | 6.60 | 2.30 | 1.27 | |
| 无引脚型 | 4 | PLP-4A | 1.00 | 1.00 | 0.60 | 0.65 |
| 4 | PLP-4B | 1.60 | 1.20 | 0.60 | 0.60 | |
| 6 | PLP-6A | 2.00 | 1.80 | 0.60 | 0.50 | |
| 10 | PLP-10A | 2.50 | 2.70 | 0.60 | 0.50 | |
| 16 | SQFN-16A | 3.00 | 3.00 | 0.75 | 0.50 | |
| 32 | SQFN-32A | 5.00 | 5.00 | 0.75 | 0.50 | |
| 4 | SSON-4B | 1.40 | 1.10 | 0.55 | 0.50 | |
| 6 | SSON-6A | 2.00 | 1.80 | 0.75 | 0.50 | |
| 6 | SSON-6E | 1.60 | 1.80 | 0.55 | 0.50 | |
| 6 | SSON-6J | 1.40 | 1.40 | 0.55 | 0.50 | |
| 8 | SSON-8B | 2.30 | 2.30 | 0.75 | 0.50 | |
